Quotation
REMARKS:
1. The price is based on FOB Shanghai .
2. Delivery: 20 working days after receiving deposit and bottle samples .
3. Payment terms: 100% by TT; 30% deposit with the order, 70% balance before shipment .
4. Packing: Bubble film and export wooden case.
5. Guarantee: 12 months for the whole machine. During the warranty period, any problems/defaults happen, free parts will be sent out in 2 working days (stock spared) and 7 working days(customized spares) by DHL, TNT or FedEx.
6. Product Certificate: International standard ISO9001, CE.
7. Documents: English operation manual, Operation video, parts qualification, warranty card.

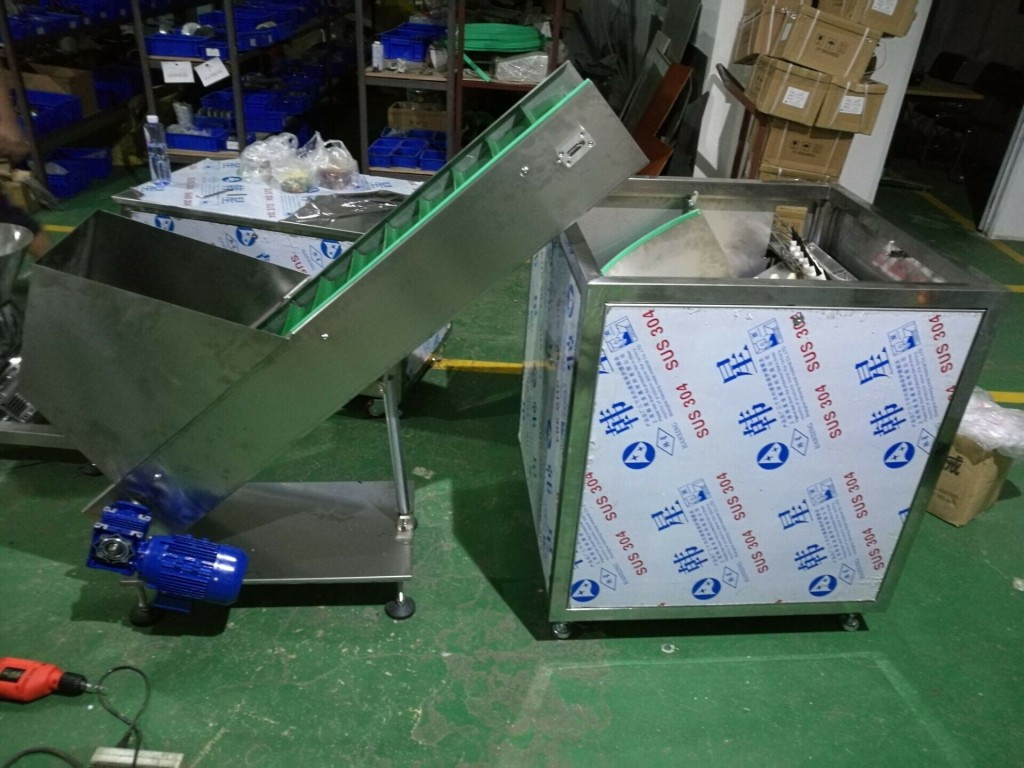

KPU-120 Bottle Unscrambler
I.Technical Parameters：
1.Working Capacity: 120 bottle/min(depend on bottle size)
2.Suitable for: 5-250 ml plastic bottles
3.Motor power: 0.37 KW
4.Total power: 0.4 KW
5.Power supply: 220 V single phase Customized
6.Unscrambler dimension: 1100×1000×1500 mm
7.Weight: 350 kg
II.Introduction and Features
The unscrambler is designed to array plastic bottles from their original disordered state to regularly parade onto the convey belt. As it meets the requirement of automation, it becomes an indispensable part in the process of fast manufacturing. It also reduces labor of operation to the least, reduces human resources and avoids losses that might be caused by man-made fault.
Machine Features
The e liquid bottle unscrambler is used for unscrambling the bottles, and conveying it to the filling line
This e-liquid bottle unscrambler is made of SS304, which is stable and durable, working with high performance, high speed.
It could be customized according to the bottle size.
Simple construction, easy and reliable operation, maintaining convenience.
Working speed stepless variation.
Could be combined with other machines as one production line to achieve automatic operation.
Optical-electric sensor detect, pause during bottle missing or jam, auto operating after re-set.
III.Configuration List
Name | Brand | Qty | Origin |
Touch screen | Weinview | 1set | Taiwan |
PLC | Mitsubishi | 1set | Japan |
Transducer | Tailing | 1set | Taiwan |
Relay | Omron | 1set | Japan |
VFD | Delta | 1set | Taiwan |
Breaker | zhengtai | 1set | China |
Optical-electric sensor | SICK | 1set | Germany |
Switch and button | Schneider | 1set | France |
Stainless steel | Pohang | 1set | Korea |
