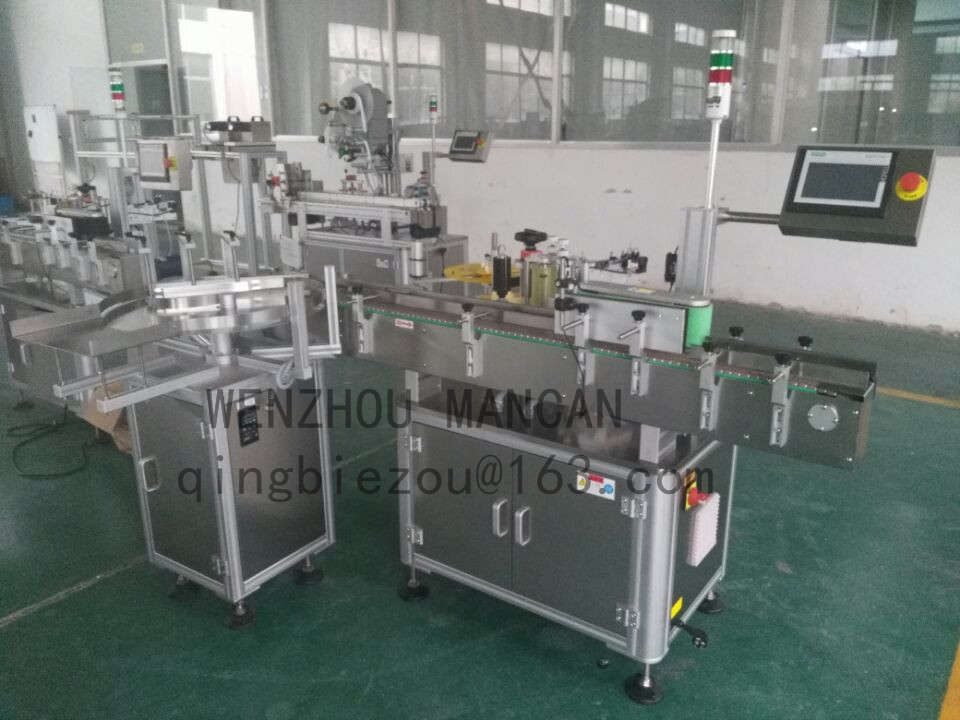

Automatic round object labeling machine
1. The Scope of Application
The model PLM-A is applicable to round objects of various size in food, medicine, daily chemical or other light industries.
2. Device Characteristic

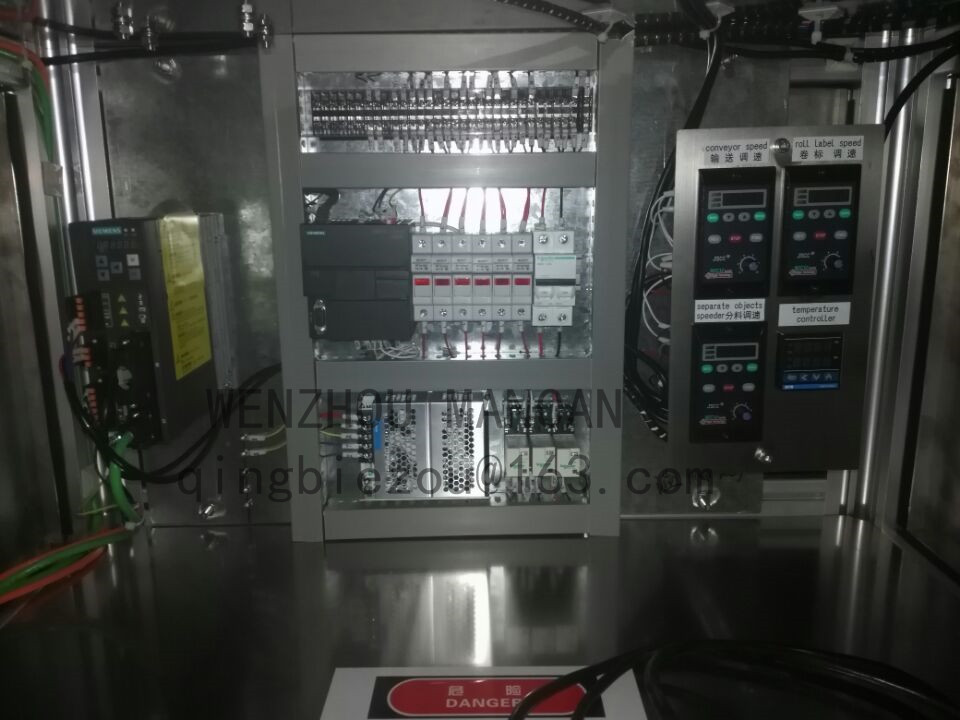

Adopt mature technology PLC control system, operation is stable and high-speed
Using touch-screen control operating system, simple, practical, efficient;
Screw adjustment pressing mechanism press bottle move accurately;
Synchronization chain mechanism ensure labeling smooth.
Advanced technology of pneumatic code system, print the batch number and expiry date clearly;
The Schematic Diagram of the PLM-A

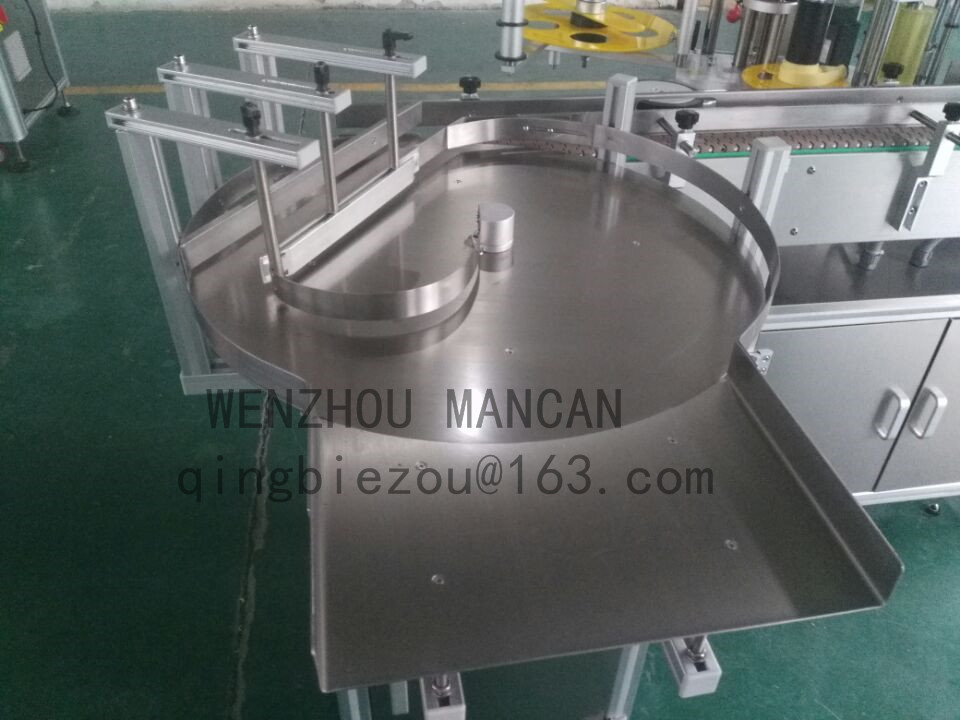

The bottle separated by separate bottle device, after the order bottle device, the bottle transported to the conveyor，move stably through the press bottle device;
When the sensor test the bottles, send signal to PLC;
The PLC received the signal and send to servo motor .

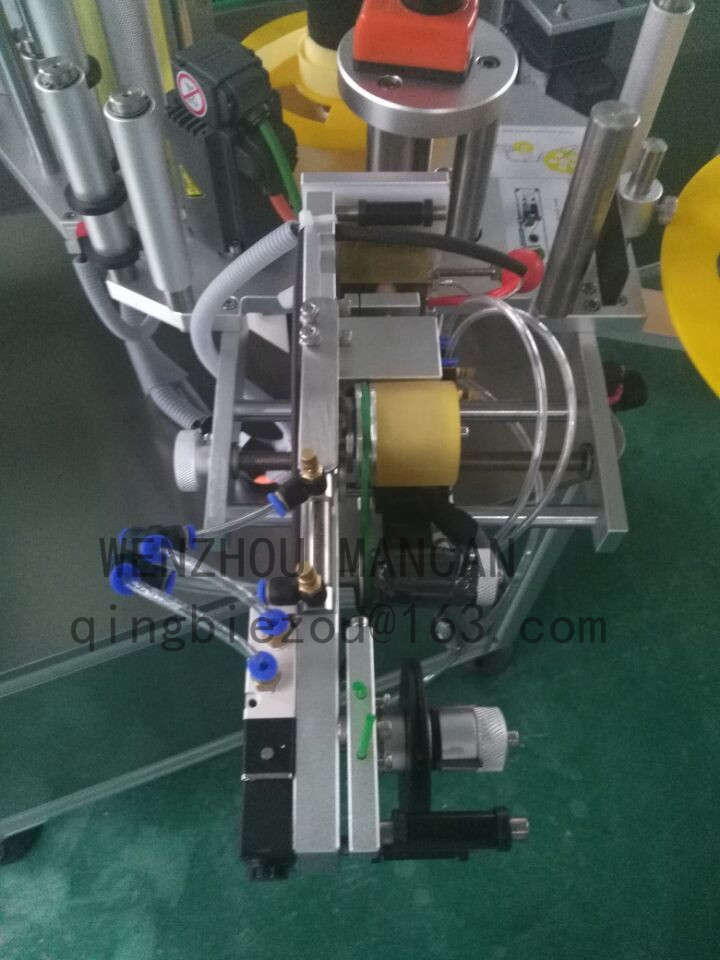

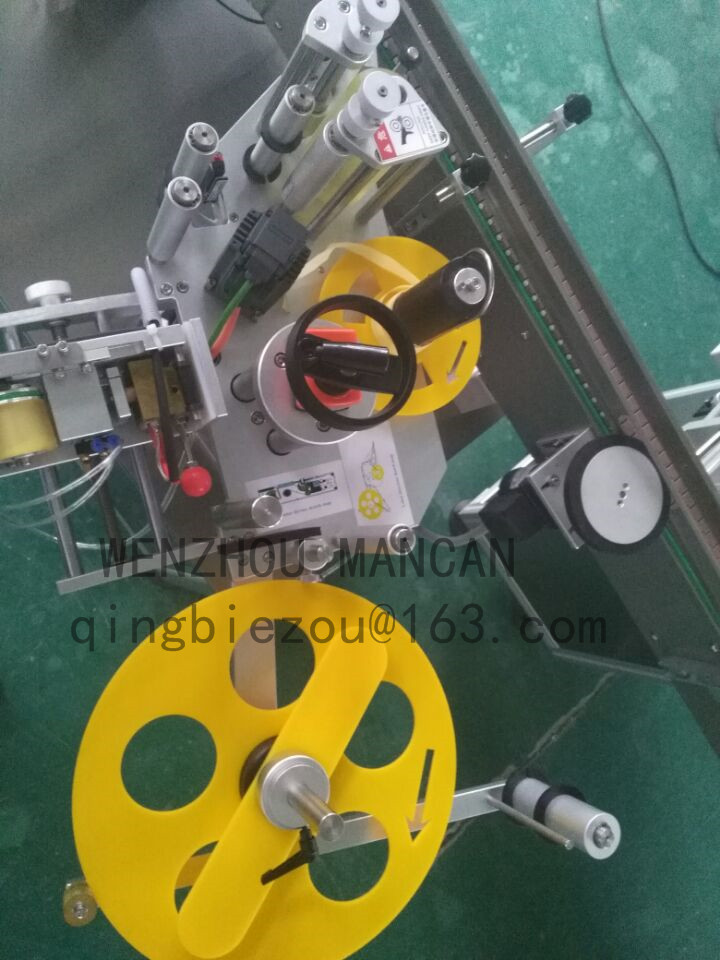

The servo motor driving the outing label motor to send label.
The bottle transported to the brush label device, which past the label on the bottle more smooth and then to the next process.
Model | PLM-A |
Driving Mode | Servo motor |
Production (pcs/min) | 30-150 |
Labeling Speed (m/min) | ≤40 |
Operating direction | Left or Right (Can customized as buyer need) |
Labeling Accuracy | ±1.0 mm (subject to the roughness of the plane) |
Label Specification | Adhesive sticker, opaque label |
The application of bottle | Outer diameter 40-140mm; Height 35-180mm |
The application of label | Height 20-200mm; Length 23-300mm |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor (w) | 550W |
Printer use air | 5kg/cm ² |
Voltage (In China) | AC220V 50/60HZ Single phase (Can customized as buyer need) |
Weight（kg） | 200 kg |
Size appearance (mm) | 1800 (L) 700 (W) 1270 (H) mm |
