Automatic horizontal way labeling machine

FOB Price:1 - 10000 USD/Set

Min.Order Quantity: 1 Set
Supply Ability: 1 Set(s) per Month
Shipping: 30DAYS
Payment Terms: T/T
Update Time: June 8, 2017, 6:29 a.m.
In Stock
Product Details
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Quick Details
  • Automatic Grade:  automatic
  • Usage:  label
  • Brand Name:  MANCAN

Specifications

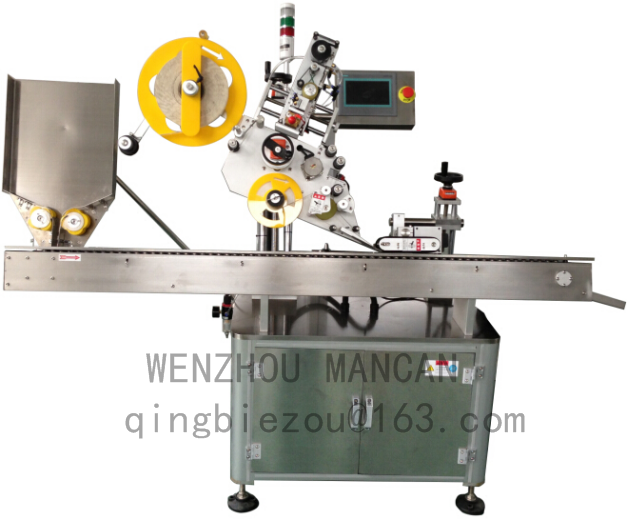

Automatic horizontal way labeling machine

 (For opaque label)


1. The Scope of Application：

  1. Applicable for round objects with smaller diameter and can not stand when labeling, such as ampoule ,vials,blood collection tube, pen,sausage and so on.

    2. Device Characteristics：

    ·Adopt mature technology PLC control system,operation is stable and high-speed;

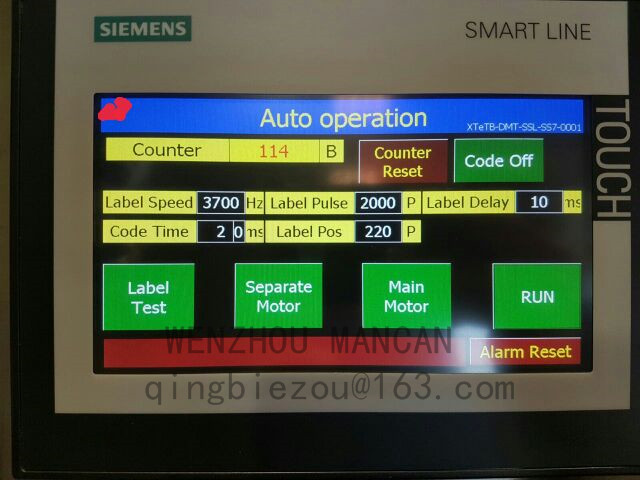

    ·Using touch-screen control operating system, simple and efficient;

    ·Advanced technology of pneumatic coding system,print the batch number and   expiry date clearly for five lines at most;

    ·Transmission-type rolling bottle device, make sure label attached more firmly;

    ·The damaged bottle rate less than 1/200000;

    3. Device Advantages：

  • Imported electric elements, stable performance, low failure rate;

  • Adopting photoelectric detection, PLC control, software operation, labeling accurately and high precision;

  • No object not labeling, automatic alarm when leakage and without label.

  • The whole machine use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;

 Technical Parameters：

Model

PWM-A

Driving Mode

Servo motor

Yield（pcs/min）

30-200

Labeling Speed（m/min）

≤40

Label Specification

Adhesive sticker，opaque label

The application of bottle

Diameter:12-25mm  Height:25-95mm

The application of label

Height 10-70mm  Length 25-80mm

The inner diameter of label roll

76mm(min)

The outer diameter of label roll

350mm(max)

Printer to use air

5kg/cm ²

The power of motor（w）

300W

Voltage (In China)

AC220V 50/60HZ Single phase

(Can customized as buyer need)

Weight (kg)

230kg

Size appearance（mm）

1800（L） 700（W） 1270（H）
