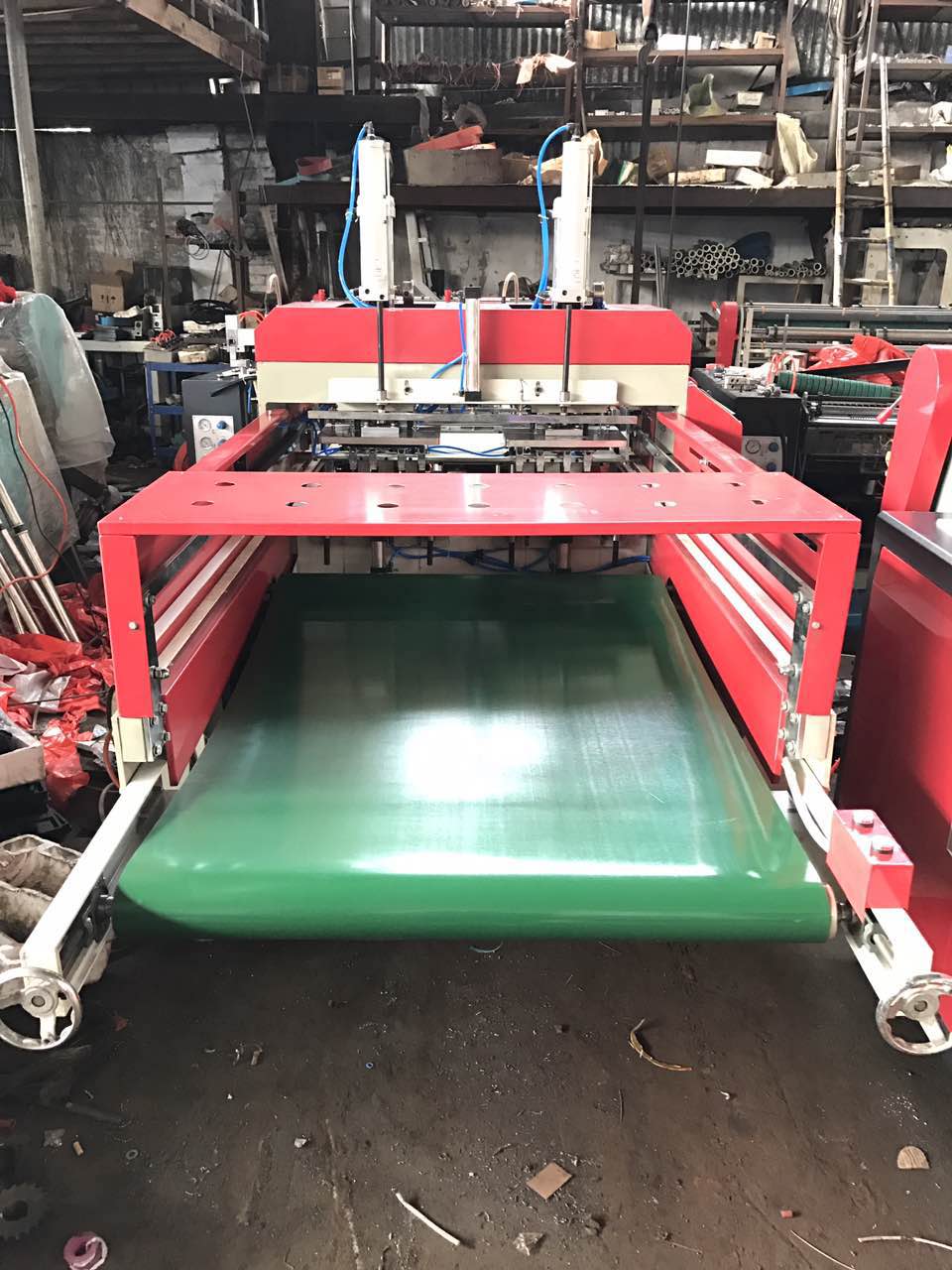

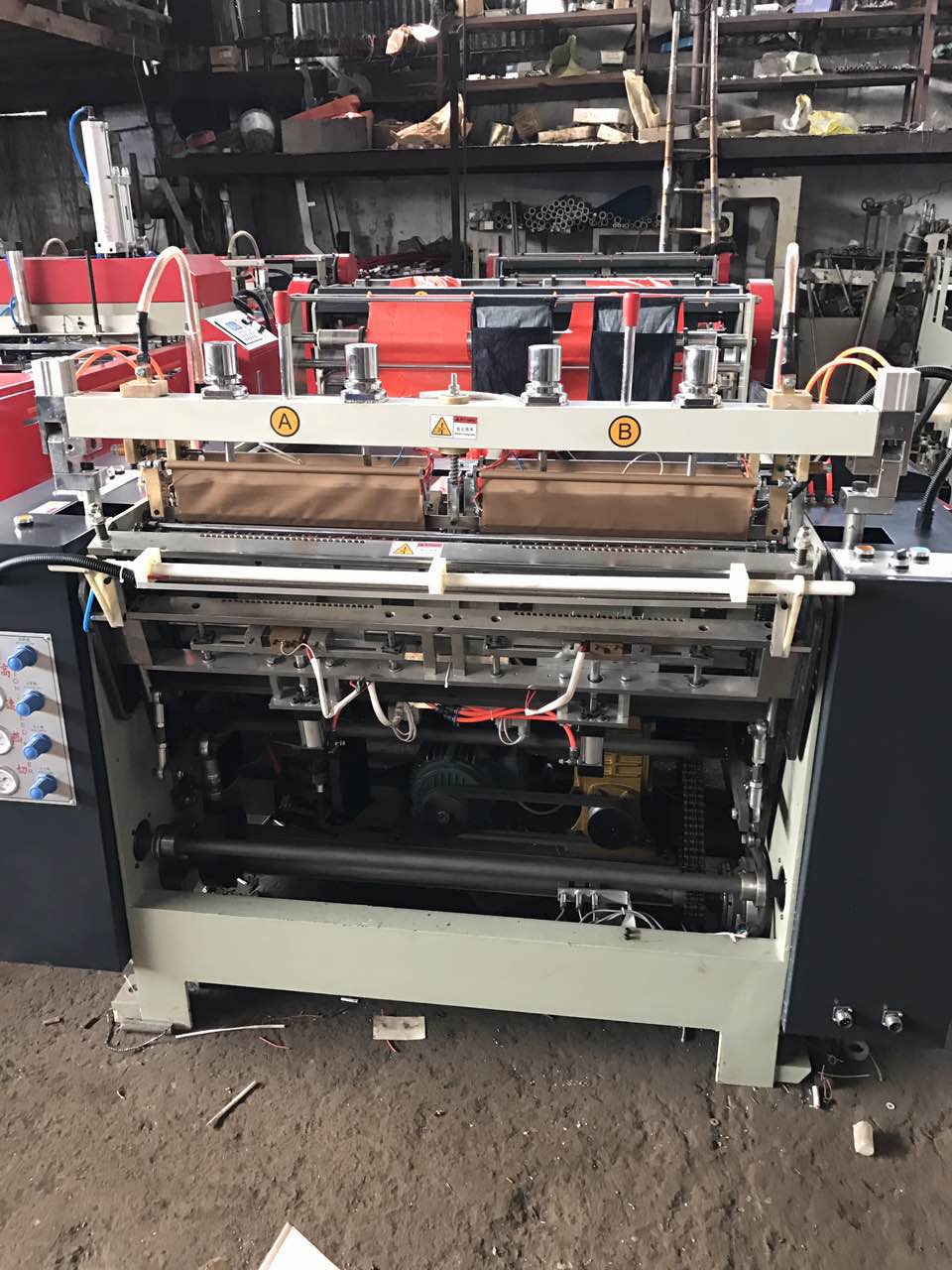

High Speed t shirt Bag Marking Machine with servo motor
Main Technical Variables
Model | QB400x2(Double Line) |
Max. width of bag-making(mm) | Max.400x2 cycles /min |
Bag size length(mm) | 650mm |
Max. production speed | Max. 300pcs/minx2 lines=600bags/min |
Thickness of Film | 0.008-0.035mmx2 |
Heaters | 8kw |
Power | 11kw |
Machine weight | 3.1t |
Servo Motor& Frequency converter | Yaskawa / Delta |
The machine to HDPE, LDPE tube film as raw material can produce printing, color, vest bag, using PLC control, stepper motor fixed length, LCD touch screen real-time display, from the feed, back cover, cut off, Chongkou, delivery one-time completion, automation High degree of good economic returns.
Performance and features:
1. The machine is a vest bag heat sealing eager machine, can automatically double-line punching, increase production, save manpower.
2. The machine is double track, double production line, double printing bag, dual servo motor.
3. Electric eye induction tracking, printing patterns accurate, electric eye failure, automatic parking warning.
4. Host motor drive control, simple operation, reduce power consumption.
5. No automatic shutdown device.
6. The machine can reach the set number of sheets, the punching machine immediately clamp the bag, without stopping, can continue to feed.
7. The new design of the closure structure, when the need to clean up the knife, the knife can be turned 180 ° fixed to clean, safe and reliable, easier maintenance.
8. Out of the bag neatly, sealed firmly.
9. The use of gas-liquid pressurized cylinder punching machine, low noise, low air consumption.
