Wenzhou Mancan Co., Ltd.

Name: Roll T-shirt Bag or Garbage Bag Making Machine



Performance and Characteristics:



1.This machine is special for making unprinted or printed T-shirt bag or flat-open bag or garbage on roll.

2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag.



Main Technical:



Model No.	DZB-800
Max.Width   of Sealing & Cutting	750mm
Length   of Sealing & Cutting	100-1000mm
Speed of   Bag-making	40~120pcs/min
Power of   Main Motor	3.0kw
Weight   of Machine	1100kg
Dimension(mm)	3300×1600×1500





Sample:

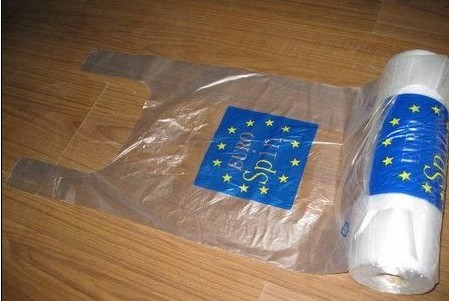

1. T-shirt bag in roll







2. Flat bag in roll

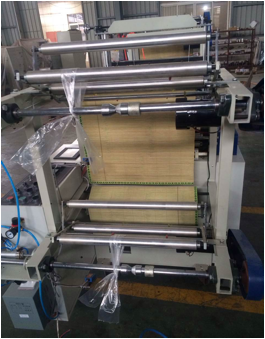

- Unwinder

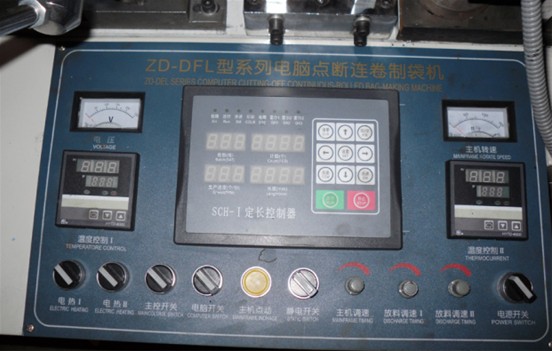

- Control Panel: TO SET THE BAG LENGTH, BAG WORKING QUANTITY





- Photocell (to do the printing bags)

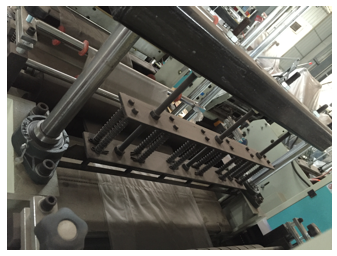

- T-shirt Shape Mould





- flat bag mould

PS: one machine with one mould. If you do two kinds of bags, you will spend USD240 to buy one of the mould.

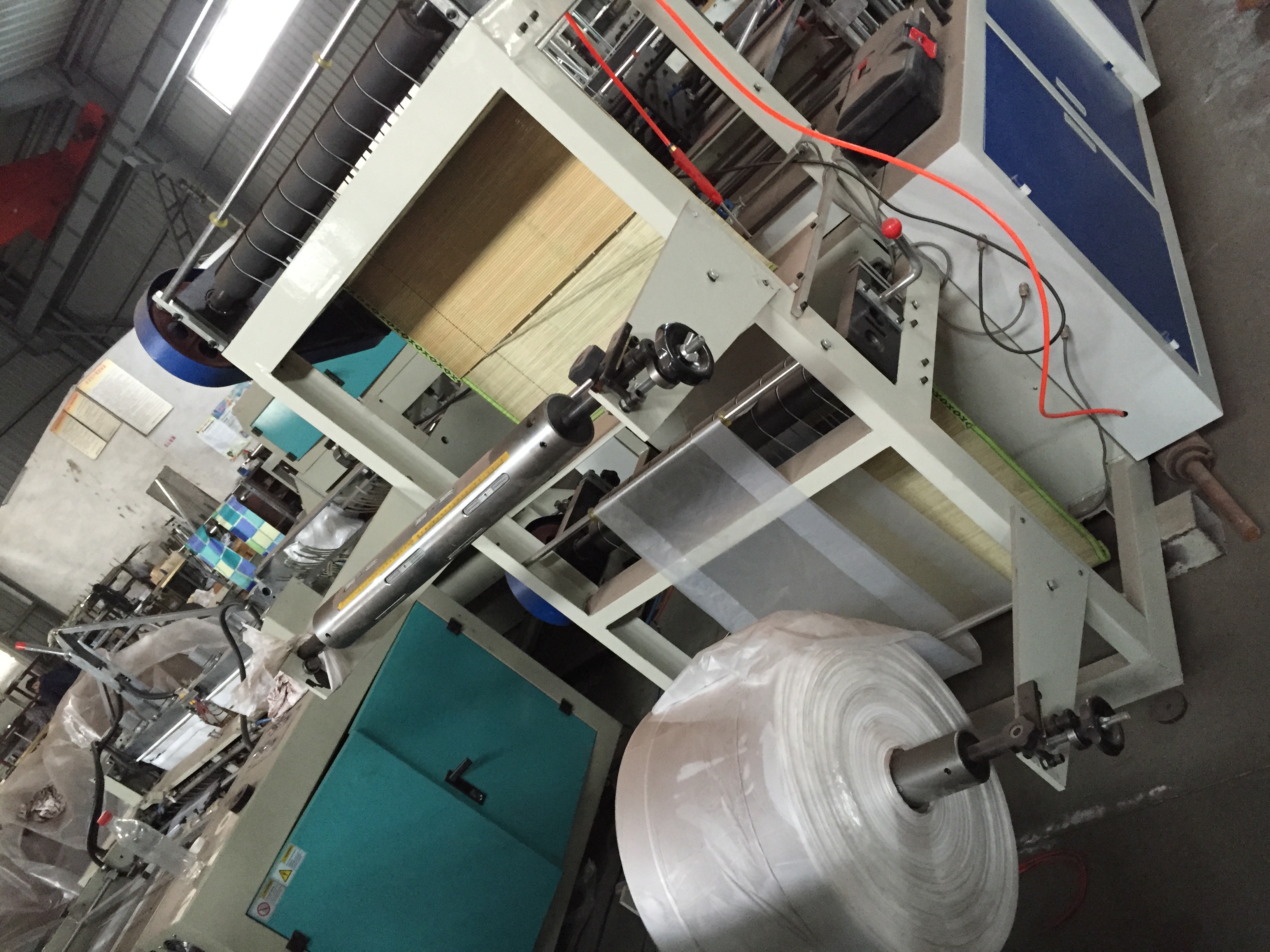

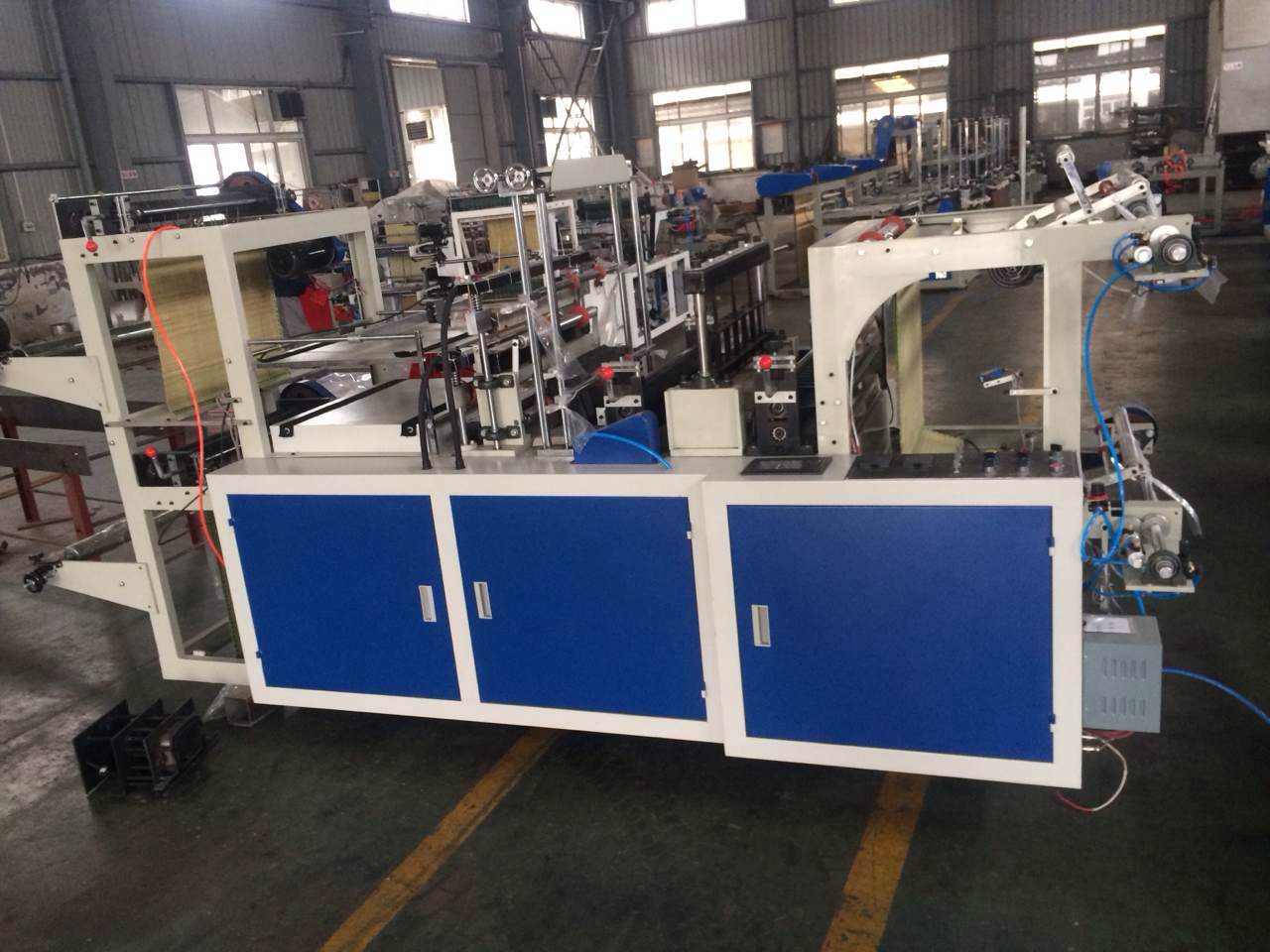

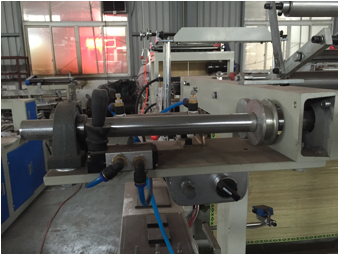

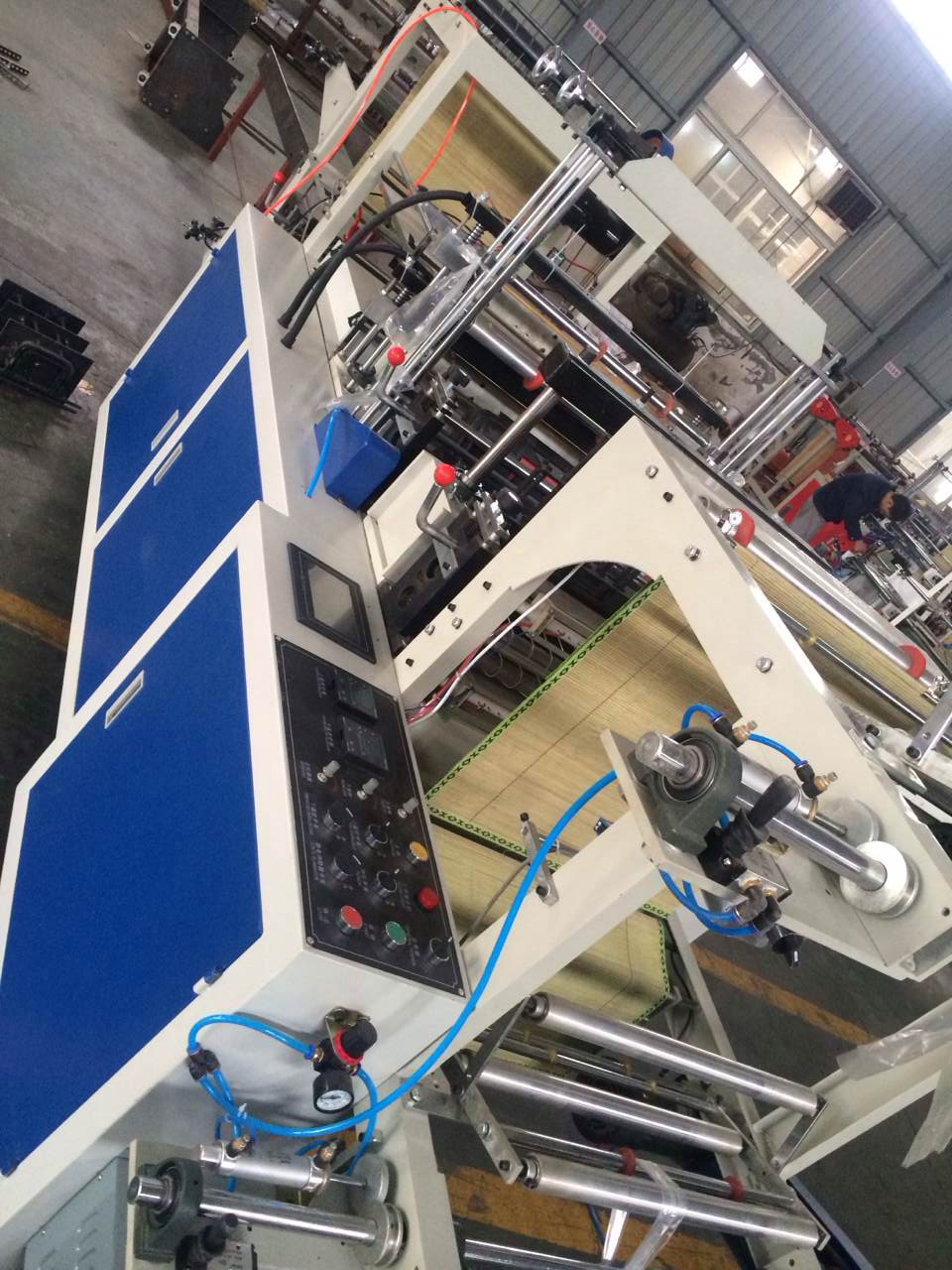

Machine Pictures:
