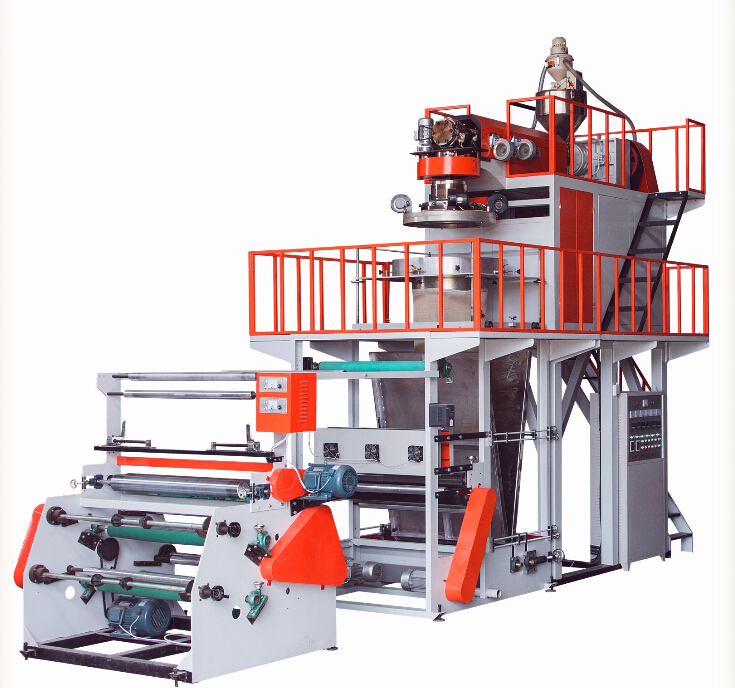

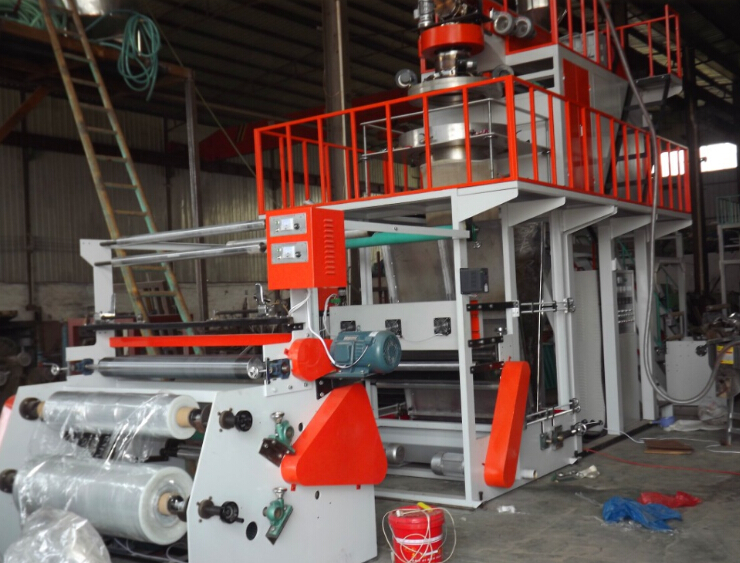

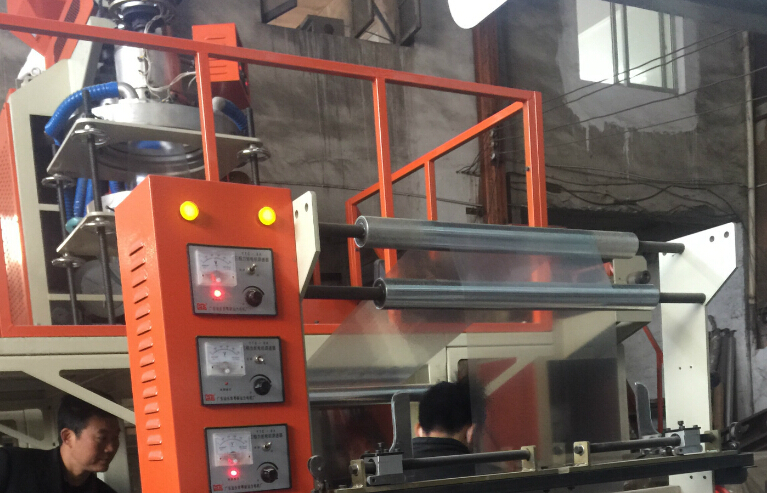

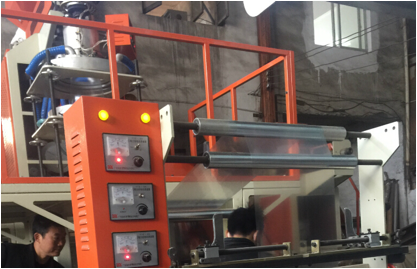

SJF-65 PP & PE film blowing machine
(with Rotary Die Head, Double Winding Station, Control Cabinet, Auto Loader)
Max folding Width of film: 800mm
Output capacity: 50-60kg/h
Characteristic：

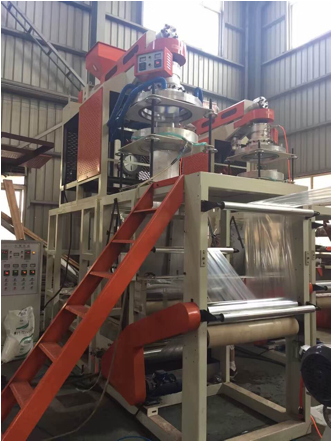

1. Rotary Die Head
-One die
-three sets Water ring to make 600mm,700mm,800mm width (if you want to make more width film,please tell us,we will quote you the prices)

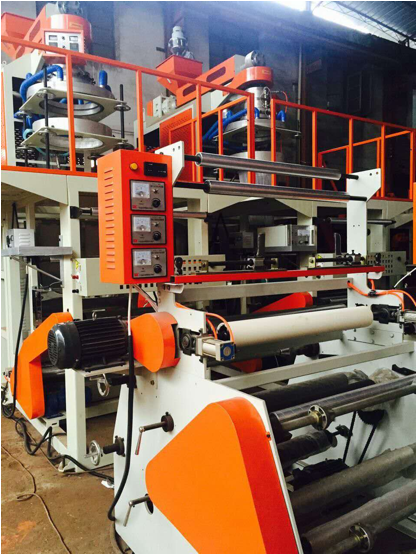

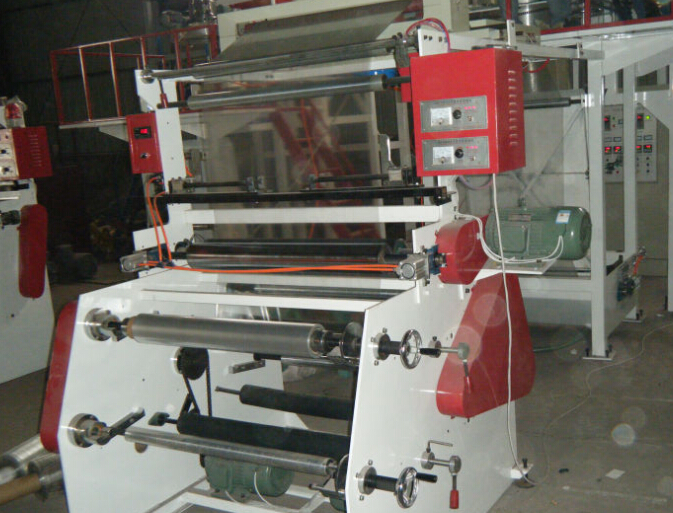

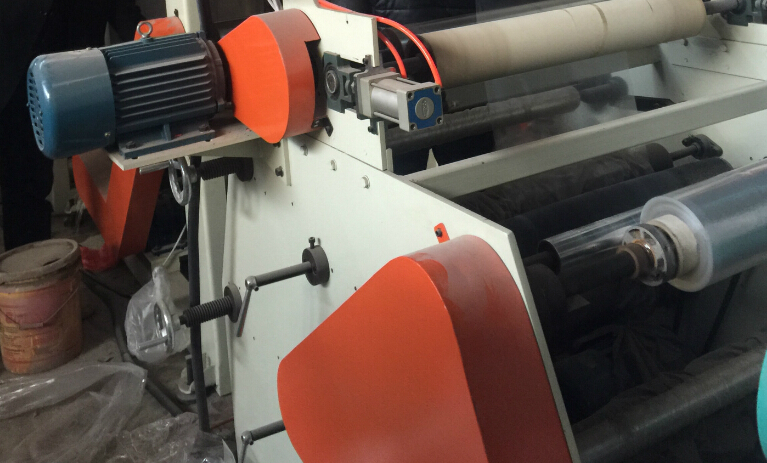

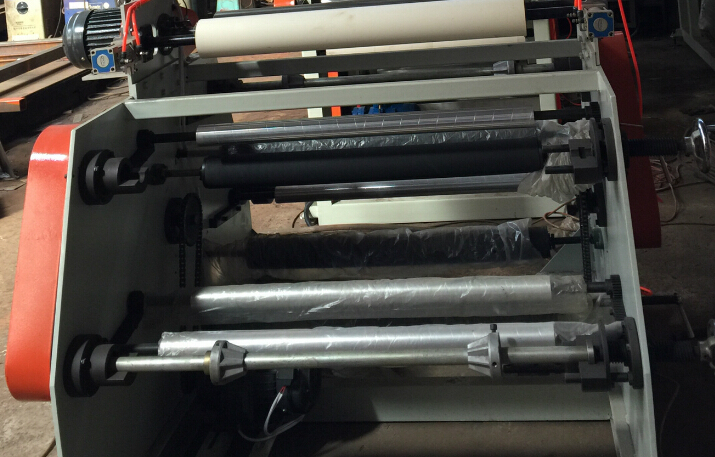

2. Double Winding Station

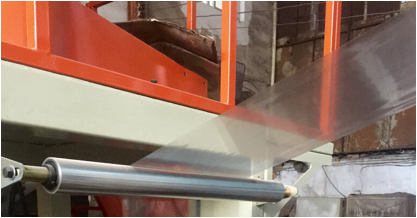

With banana roller
Winding motor: torque motor control
With 4pcs air shaft
3. Control Cabinet
1). Temperature of screw automatically controlled ( 3 zones)
2). Independent switches controls including amp, rpm and m/min meters
for the whole machine.
Main Technical:
Model | SJF-65 |
Max folding Width of film | 200mm-800mm |
Main motor power | 5 kw(Inverter motor) |
Cooling fan | 0.75kw |
Diameter of screw | 65mm |
L/D ratio of screw | 28:1 |
Speed of screw | 5-100rpm |
Barrel cooling | 1/6 Hp blower*2 |
Film thickness | 0.01-0.10mm |
Output capacity | 50-60kg/h |
Screen filter | Mechanical screen changer |
| 158mm |
| 810mm |
Diameter head | 300mm |
Material of screw and barrel | Alloyed high quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment |
Filter Changer | Manual |
Total Power | 22kw |
Weight of Machine | 5000kg |
Machine Dimension | 5000x2000x5500mm |
|
|
|
|
|
|
Detail for machine:

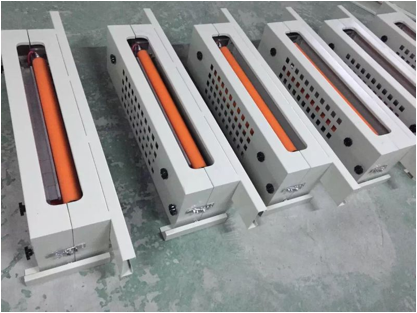

Corona:
